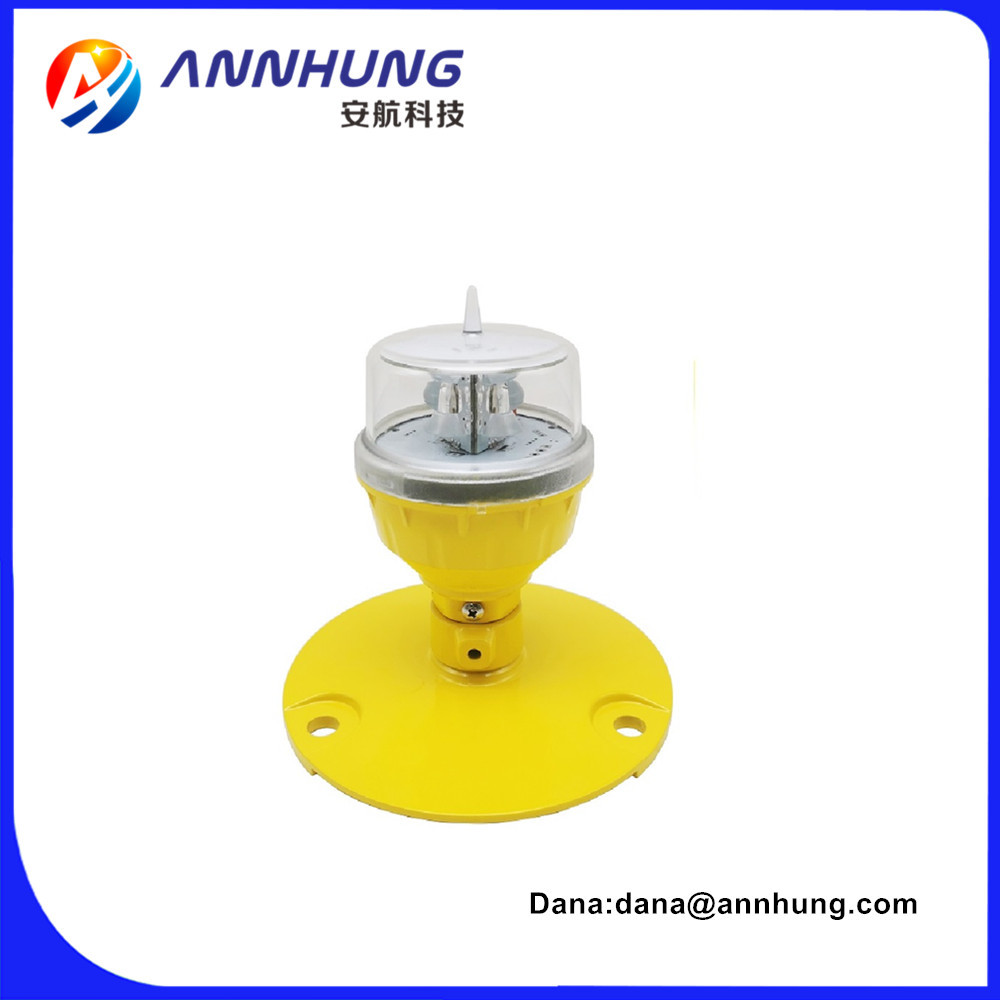

Heliport Elevated light should not exceed a height of 25cm.There is a fragile coupling in the base connection, so if aircraft hit the light by accident, the base will break immediately to avoid more damage.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC) and DC48V, DC12V and other voltage is optional
Physical
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Application
Helipad/Heliport TLOF edge areas
Heliport FATO edge
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Operating Voltage | DC48V and AC(110-240VAC), DC12V |
| Power(W) | 5W |
| Weight(kg) | 0.7 |
| Product Life Expectancy | ≥10 years |
| Ambient Temperature(℃) | -55~70 |
| Humidity | 10~90% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| ICAO | ICAO Annex 14 Volume ǁ Heliports 5.3 |
